CLASS III, Indoor, Cabin Operated Single Hook, Double Grider EOT Cranes

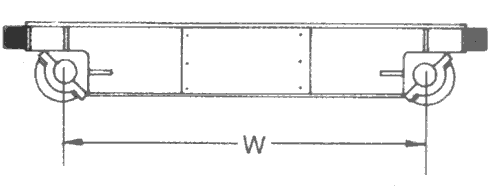

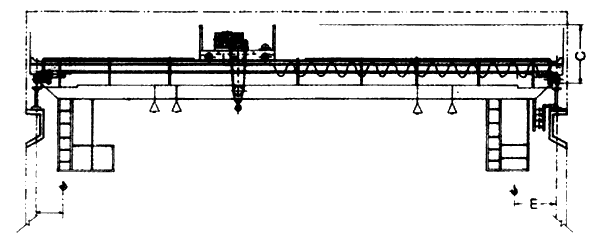

Main hoist capacity (T)	Span (M)	Lift (M)	Weight (approx).(T)		Crane height * C (M)	Hook approach (M) E	Corner * Load (T)	Wheel base W (M)
			Crab	Crane
3.15	16	6.3	1	11.2	1.3	0.9	9	3.2
4	16	8	1.4	12.1	1.4	0.9	10.5	3.2
5	16	8	1.6	12.8	1.5	1	12	3.2
6.3	16	8	1.9	13.6	1.6	1	13.5	3.2
8	16	8	2.3	14.5	1.7	1.1	16	3.2
10	16	8	2.7	15.5	1.9	1.1	18	3.2
12.5	16	10	3.2	17	2	1.2	21	3.6
16	16	10	4	18.7	2.2	1.3	25	3.6
20	16	10	4	20.4	2.3	1.4	30	4.5
25	16	10	5.3	22	2.5	1.4	35.5	4.5
31.5	16	12.5	6.7	25.2	2.7	1.5	44.5	4.5
40	16	12.5	8	27.8	2.9	1.6	53	4.5
50	16	12.5	9.5	30.6	3.2	1.7	63	5.5
63	16	12.5	11	34	3.5	1.8	75	5.5
80	16	16	14	40	3.8	1.9	95	5.5
100	16	16	17	46	4.1	2	120	6.3
125	16	16	20	52	4.5	2.1	140	7.1
160	16	20	25	62	5	2.3	180	7.1

* A cornet Load is the sum of wheel loads in a single corner.
*Crane height is the total distance from the Top of Gantry Rail to the topmost point of crab.

The above dimensions are subject to change as per design & customers requirement.
