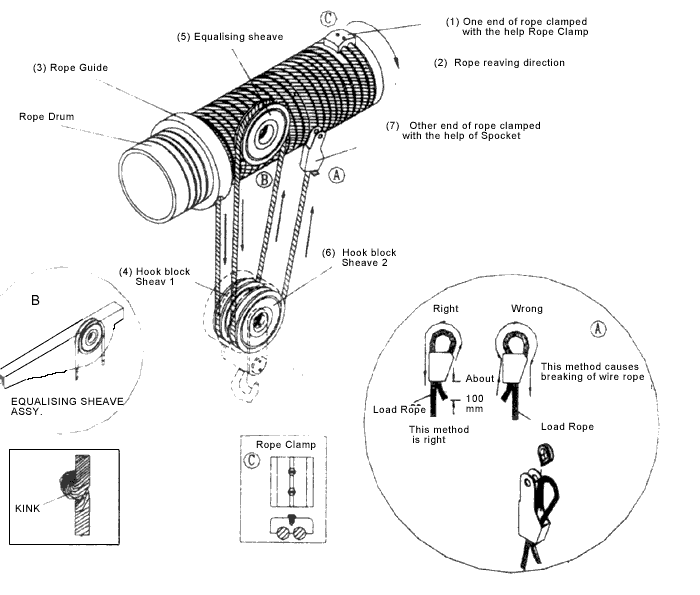

Rope Reeving 4/1 Aragement

Directions :
(a) Clamp the rope as shown in (1)
(b) Start reeving in the direction shown in (2) till the end of groove.
(c) Pass through the rope guide (3)
(d) Pass through the hook block sheave 1 (4)
(e) Then to the equalising sheave. (5)
(f) Then to the hook block sheave 2 (6)
(g) Anchore free end of the rope to the rope clamp.

Rope Reeving for 4/2 Arrangement

Directions :
(a) Pass the rope through equalising sheave (1)
(b) Pass both end of the rope through the two sheaves of bottom block (2)
(c) Then through the rope guide (3)
(d) Get both the free ends clamped as shown in (4)
(e) Then start winding after ensuring that direction of rotation of the drum is same as the direction of reeving by switching on hoisting motor.
(f) Do proper lubrication.
