CLASS III, Indoor, Cabin Operated With Auxilliary Hoist Double Hook, Double Grider EOT Cranes

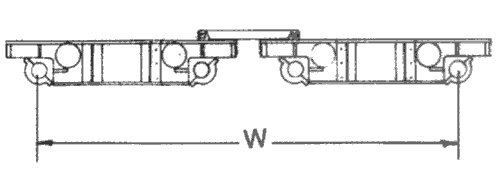

Main hoist capacity (T)	Auxillary hoist capacity (T)	Span (M)	Lift (M)	Weight (approx).(T)		Crane height * C (M)	Hook approach (M) E	Corner * Load (T)	Wheel base W (M)
Main hoist capacity (T)	Auxillary hoist capacity (T)	Span (M)	Lift (M)	Crab	Crane	Crane height * C (M)	Hook approach (M) E	Corner * Load (T)	Wheel base W (M)
10	2.5	16	8	3.6	16.5	1.9	1.11	19	3.2
12.5	3.15	16	10	4.3	18	2	1.2	22.5	3.6
16	4	16	10	5.4	20	2	1.3	26.5	3.6
20	5	16	10	6.4	22	2.3	1.4	31.5	4.5
25	6.3	16	10	7.2	24	2.5	1.4	37.5	4.5
31.5	8	16	12.5	9	28	2.7	1.5	47.5	4.5
40	10	16	12.5	11	31	2.9	1.6	56	4.5
50	12.5	16	12.5	13	34.5	3.2	1.7	67	5.5
63	16	16	12.5	15	38.5	3.5	1.8	80	5.5
80	20	16	16	19	46	3.8	1.9	100	5.5
100	25	16	16	23	53	4.1	2	125	6.3
125	31.5	16	16	27.1	60	4.5	2.1	150	7.1
160	40	16	20	34	73	4.9	2.3	190	7.1

* A cornet Load is the sum of wheel loads in a single corner.

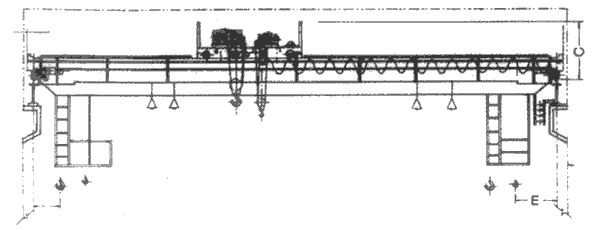

*Crane height is the total distance from the Top of Gantry Rail to the topmost point of crab.

The above dimensions are subject to change as per design & customers requirement.
